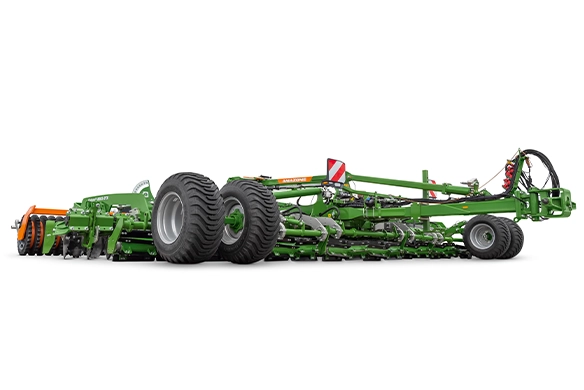

Amazone CatrosXL 8003-2TX folded in transport position with hydraulic system and large transport tires for road readiness.

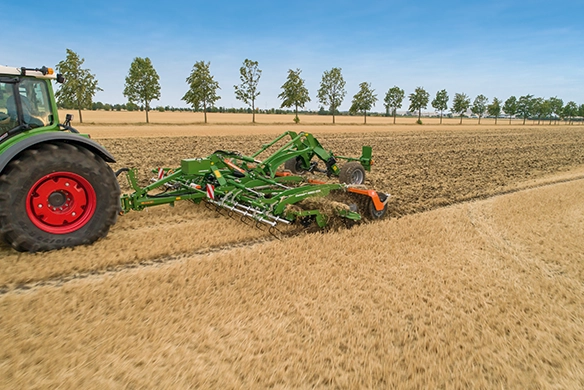

Fendt tractor pulling Amazone CatrosXL across harvested wheat field for fast stubble incorporation and topsoil cultivation.

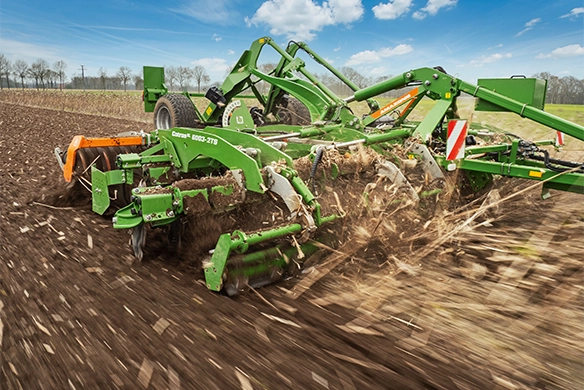

Amazone CatrosXL 6003-2TS disc harrow breaking up crop residue in the field with deep, aggressive disc penetration for optimal soil prep.

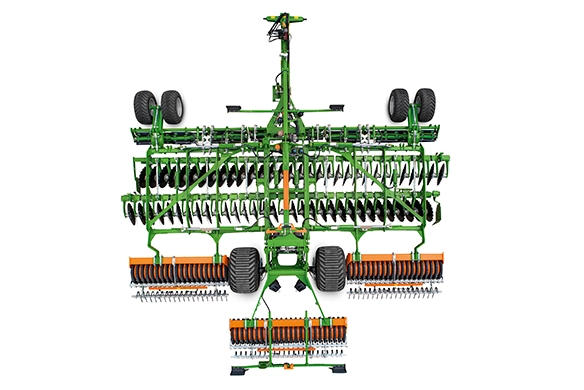

Top-down view of Amazone CatrosXL 8003-2TX high-performance compact disc harrow showcasing dual roller and disc configurations for large-scale field tillage.

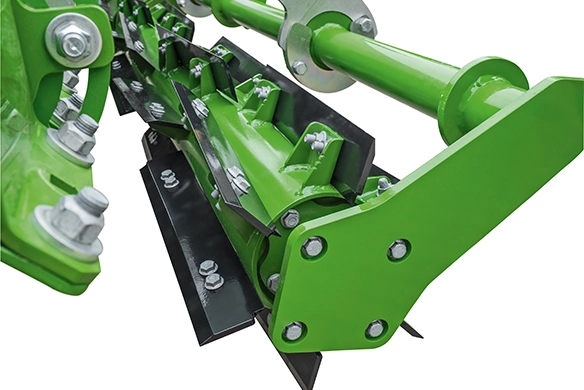

Detailed view of Amazone Catros+ disc harrow blade mounting system with bolted tine supports for reliable field performance.

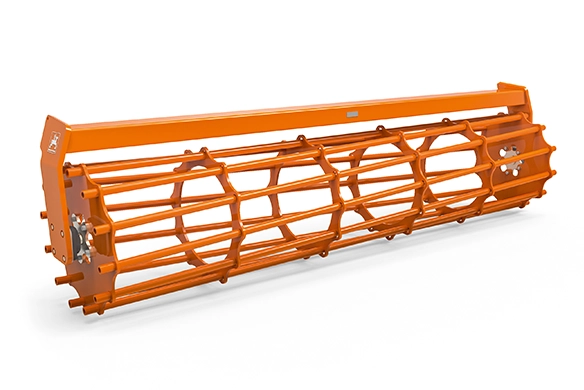

Amazone SW cage roller for Catros+ tillage system, designed to break clods and level soil after discing for optimal seedbed preparation.

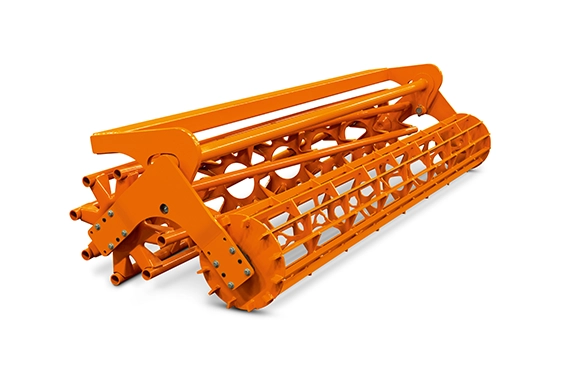

Durable tandem roller for Amazone CatrosXL disc harrow designed for consistent crumbling and reconsolidation of soil.

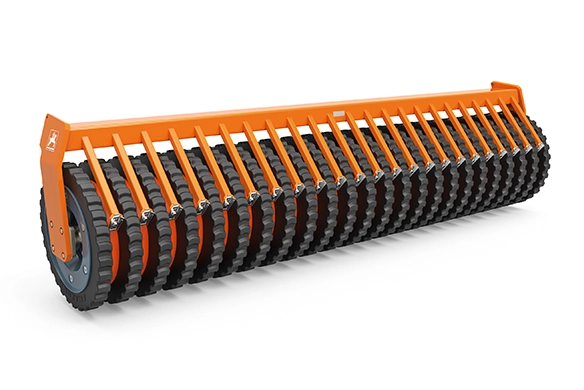

Amazone KWM wedge ring roller for the Catros+ harrow, delivering consistent reconsolidation across variable soil types.

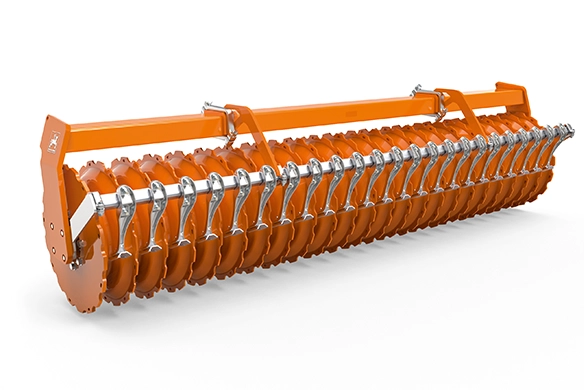

Amazone DW disc roller attachment with deep soil contour following for improved structure and water management in seedbeds.

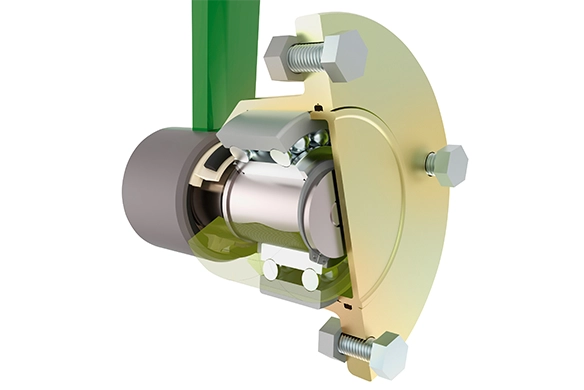

Cutaway illustration of the Amazone Catros+ maintenance-free disc bearing unit with sealed ball bearings for long-term durability.

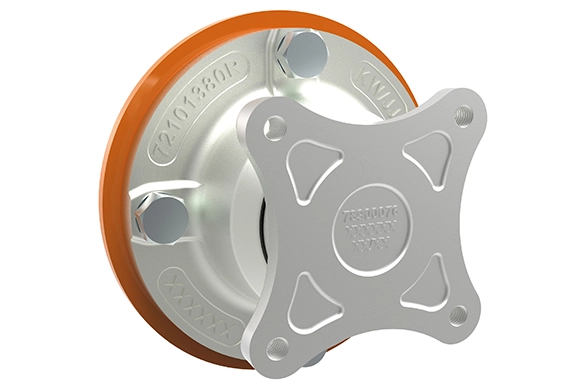

Heavy-duty sealed roller bearing component of Amazone CatrosXL ensuring smooth, reliable performance in harsh tillage conditions.

Thumbnail for Close up of Amazone CatrosXL 6003-2TS working in the soil.

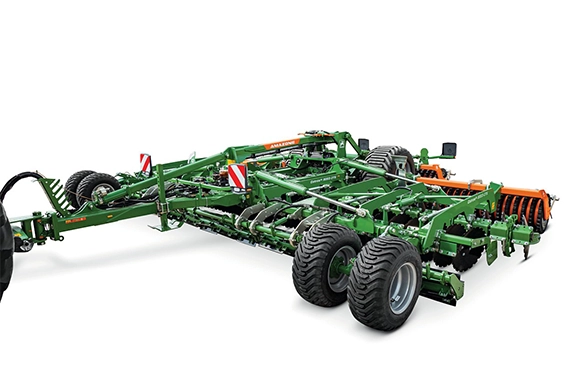

Thumbnail for Amazone CatrosXL knockout image.

Thumbnail for Amazone CatrosXL 8003-2TX folded in transport position with hydraulic system and large transport tires for road readiness.

Thumbnail for Fendt tractor pulling Amazone CatrosXL across harvested wheat field for fast stubble incorporation and topsoil cultivation.

Thumbnail for Amazone CatrosXL 6003-2TS disc harrow breaking up crop residue in the field with deep, aggressive disc penetration for optimal soil prep.

Thumbnail for Top-down view of Amazone CatrosXL 8003-2TX high-performance compact disc harrow showcasing dual roller and disc configurations for large-scale field tillage.

Thumbnail for Detailed view of Amazone Catros+ disc harrow blade mounting system with bolted tine supports for reliable field performance.

Thumbnail for Amazone SW cage roller for Catros+ tillage system, designed to break clods and level soil after discing for optimal seedbed preparation.

Thumbnail for Durable tandem roller for Amazone CatrosXL disc harrow designed for consistent crumbling and reconsolidation of soil.

Thumbnail for Amazone KWM wedge ring roller for the Catros+ harrow, delivering consistent reconsolidation across variable soil types.

Thumbnail for Amazone DW disc roller attachment with deep soil contour following for improved structure and water management in seedbeds.

Thumbnail for Cutaway illustration of the Amazone Catros+ maintenance-free disc bearing unit with sealed ball bearings for long-term durability.

CatrosXL

The CatrosXL features a durable and rigorously tested frame, built to handle heavy corn residues and deeper tillage. Equipped with larger 24-inch serrated discs and class-leading metal sealed disc bearings, it offers reliability in challenging conditions. The SmartFrame system delivers precise hydraulic depth control from the cab, ensuring uniform working depth for consistent results, minimizing machine bounce, plugging, and side-pull. It includes diverse roller options, heavy-duty bearings on rear rollers, and the GreenDrill for cover crop seeding.

Request a Quote Request a Demo Download Brochure

Specifications

Model	Working Width (FT)	Disc Diameter (IN)	Number of Discs	Approx. Weight (LBS)	Working Speed (MPH)	Disc Bearing Seal	Disc Bearing Lubrication	Depth Adjustment	Wing Pressure	Front Tools	Transport Width (FT)	Power Requirements (HP/FT)
CatrosXL 5003-2TS	16.5	24	2 x 20	13,117	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	-	Knife Roller (option)	9.8	12-17
CatrosXL 6003-2TS	20	24	2 x 24	14,198	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	-	Knife Roller (option)	9.8	12-17
CatrosXL 7003-2TX	23	24	2 x 28	18,761	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	Hydraulic ContourFrame	Knife Roller (option)	9.8	12-17
CatrosXL 8003-2TX	26	24	2x 32	19,963	10+	Metal Face Seal	Oil Filled	Hydraulic (SmartFrame)	Hydraulic ContourFrame	Knife Roller (option)	9.8	12-17
